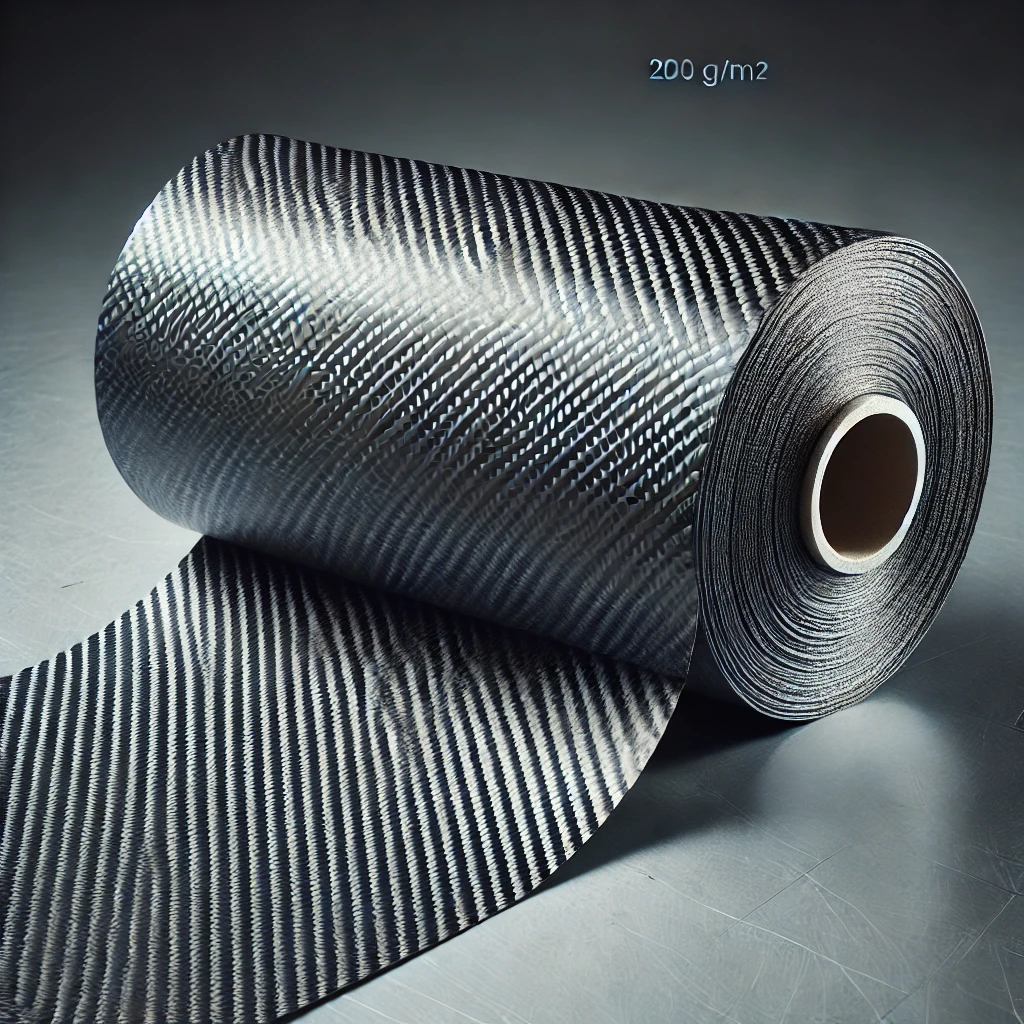

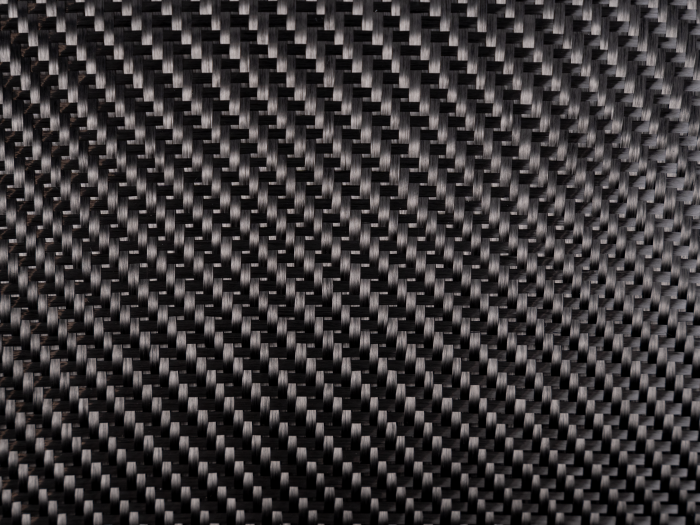

Carbonfiber Twill 200g/m2

Twill 200 g/m² is a woven carbon fiber fabric with a twill weave pattern, offering a balance of strength, flexibility, and aesthetics. It has high tensile strength (~3,500 MPa), lightweight properties, and excellent durability. Common applications include automotive, aerospace, marine, and sports equipment, as well as composite reinforcements. It is typically used with resins (epoxy, polyester, or vinyl ester) for lamination. Key benefits include good drapability, impact resistance, and a premium appearance, though proper resin selection and processing techniques are important for optimal performance.

Our products can be customized by your needs.

Additional information

Size

1m² (100x100cm)

Weaving Type

Twill woven

Upper Material

Carbonfiber

Density (g/cm³)

1.78

Fiber Areal Weight (g/m²)

200

Tensile Strength (MPa)

3200

Elastic Modulus (GPa)

210

Elongation (%)

1.6
